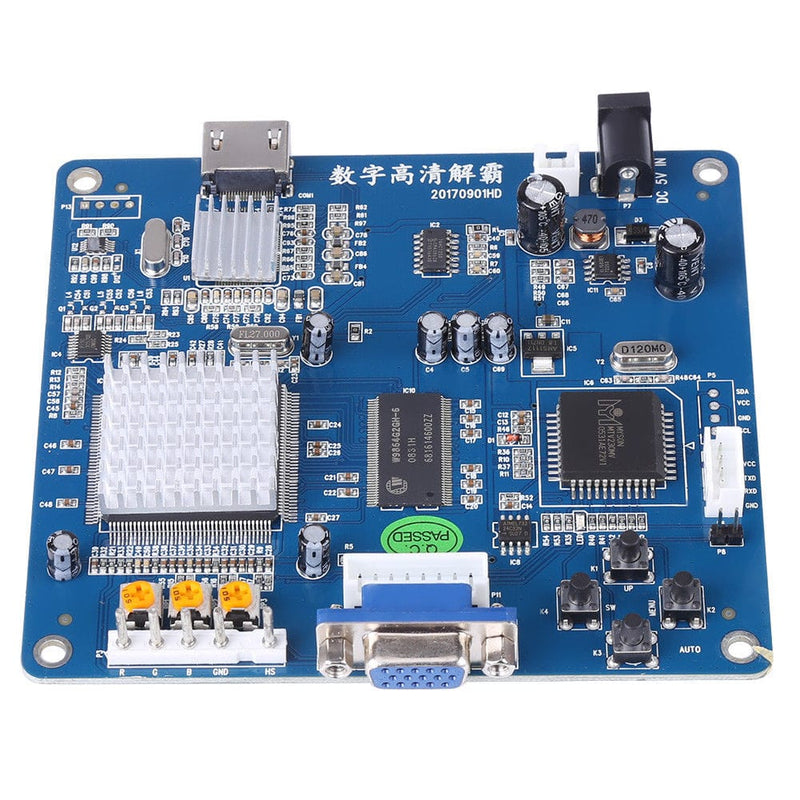

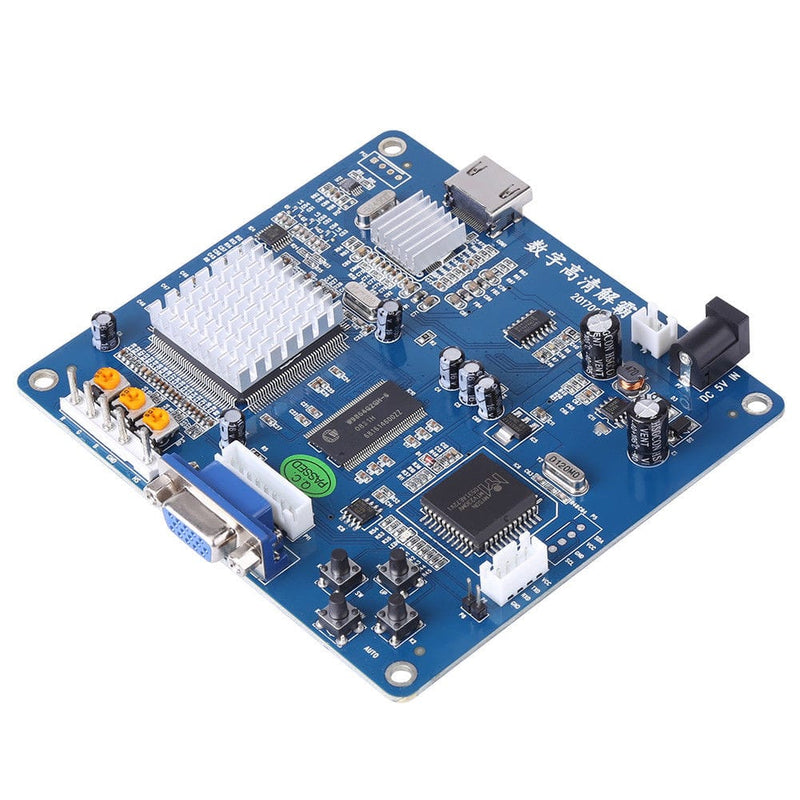

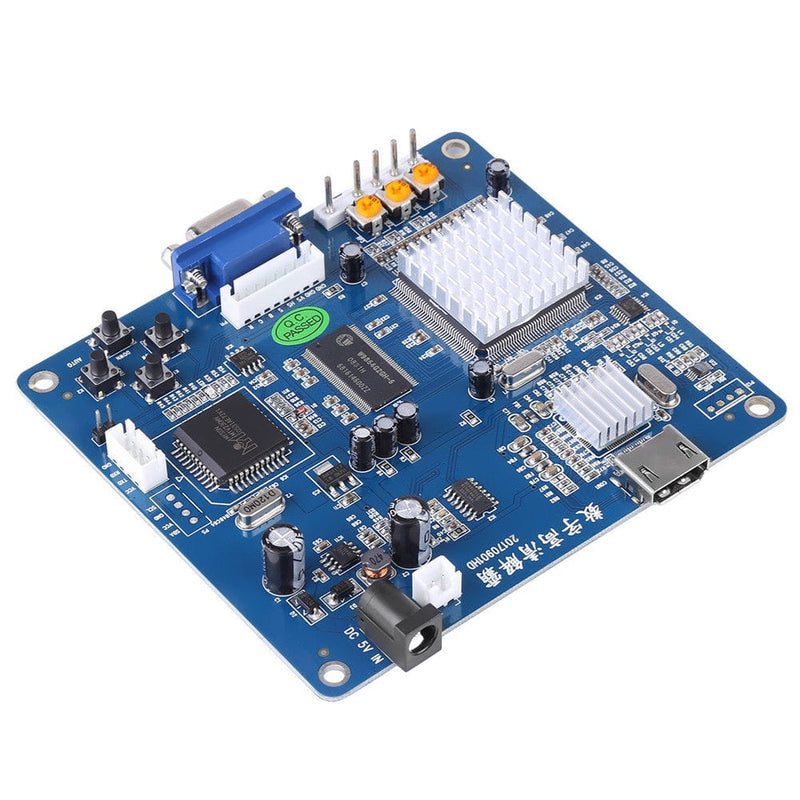

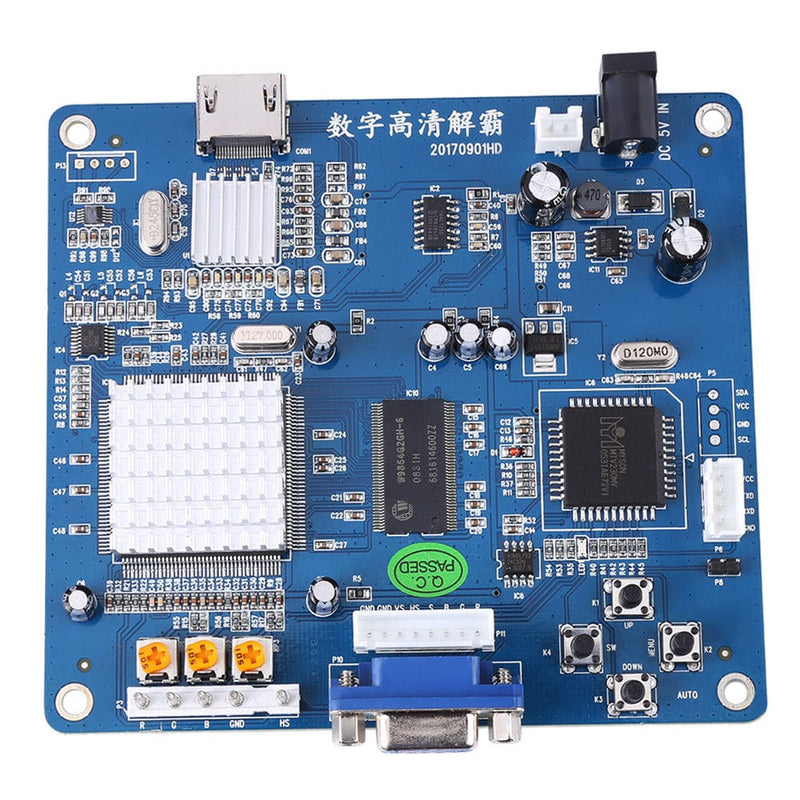

VGA/RGB/CGA/EGA/YUV TO HDMI Video Output Converter Board HD for Arcade Blue
Original price
$48.99
-
Original price
$48.99
Original price
$48.99
$48.99
-
$48.99
Current price
$48.99
Arcade Game Video Signal Convert Card:RGBS/RGBHV/CGA/EGA/VGA To HDMI
Technical parameter:

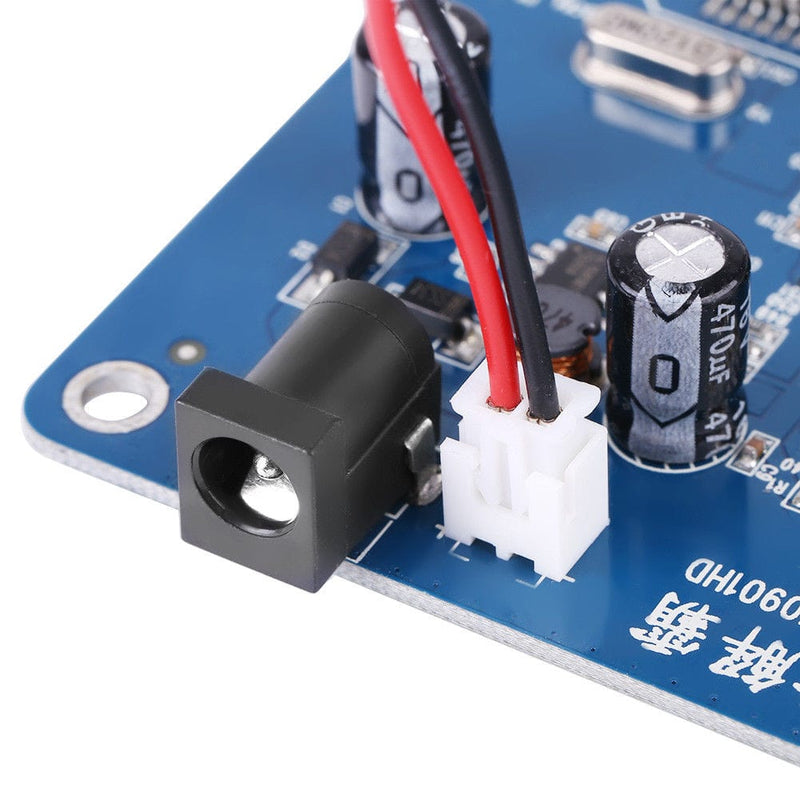

1.Input power: DC 5V /2A.
2.Input signal:
CGA/EGA 14.5-16.5K 23.5-25.5K 30.5-32.5K Auto scan
RGBHV 30.5-32.5K Auto scan
VGA 30.5-32.5K Auto scan
3.Output signal HDMI: 640*480,800*600,1024*768,1360*768.
4.Input YPbPr format support:480i-60, 576i-50, 1080i-50, 1080i-60, 480p-60, 576p-60, 720p-50, 720p-60, 1080p-50, 1080p-60 Automatic identification.
5.Input three primary colors can be adjusted by 500Ω potentiometer.
6.Support English and Chinese menu display.
Application:
This CGA/EGA/YUV to HDMI Arcade Converter PCB allows all types of RGB, EGA, or YUV component signals to be up-converter and display on a 31KHz HDMI monitor, or HD-TV with HG connection. No need to set dip switches in order to figure out the specific input frequency as all inputs are detected automatically!
FEATURES

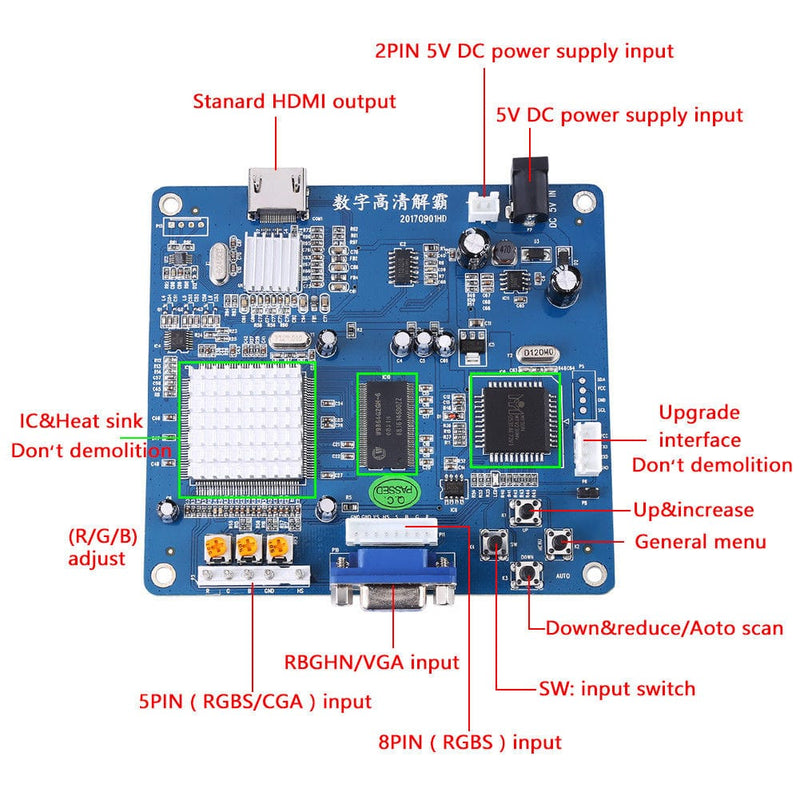

- Supports RGBS/CGA/RGBHV/EGA/VGA signal input.
- Supports HDMI output 640*480,800*600,1024*768,1360*768.
- RGBS/CGA/RGBHV/EGA/VGA signal auto scan(15K,24K,31K)
- Chinese and English OSD.
- Supports position control & zoom control.
- True digital 24-bit A/D converter for true 16.7-million color conversion.
- Supports all HDMI monitor (CRT、LCD、PDP、PROJECT……)
Package Included:
1 x Converter Board

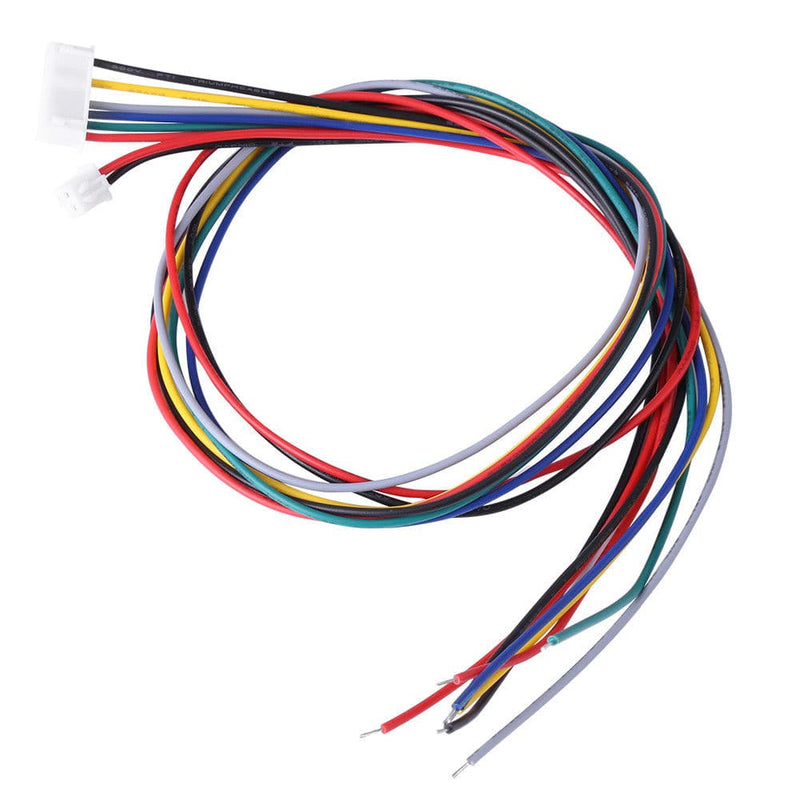

1 x 2 Pin power cable

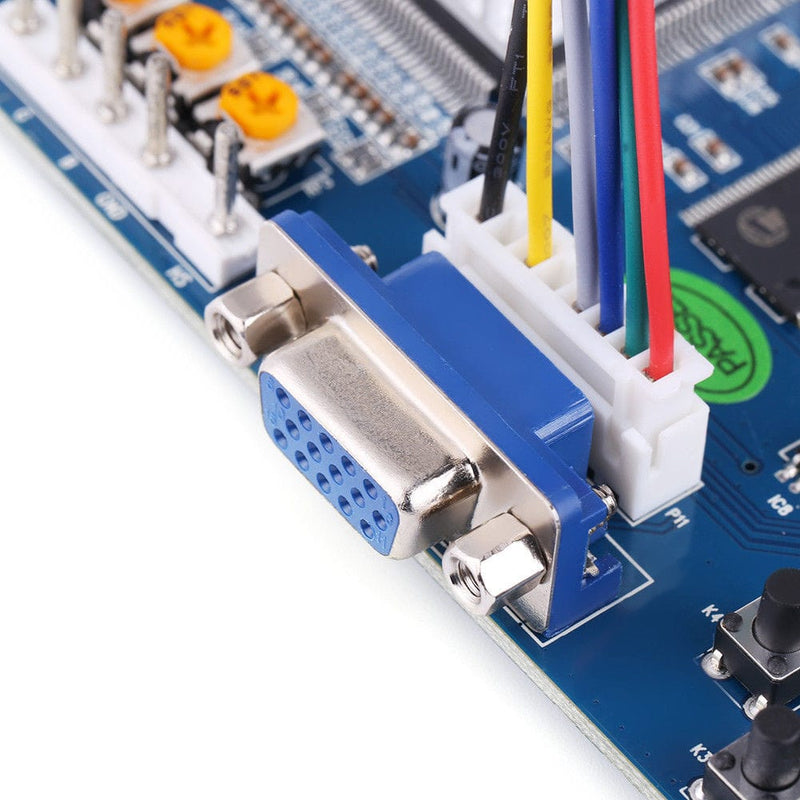

1 x 8 Pin signal cable
